Just now, SeanP said:

Hey all!!!

New Heritage owner here.  Im Sean (SeanP username....good irish lad... Sean Patrick).

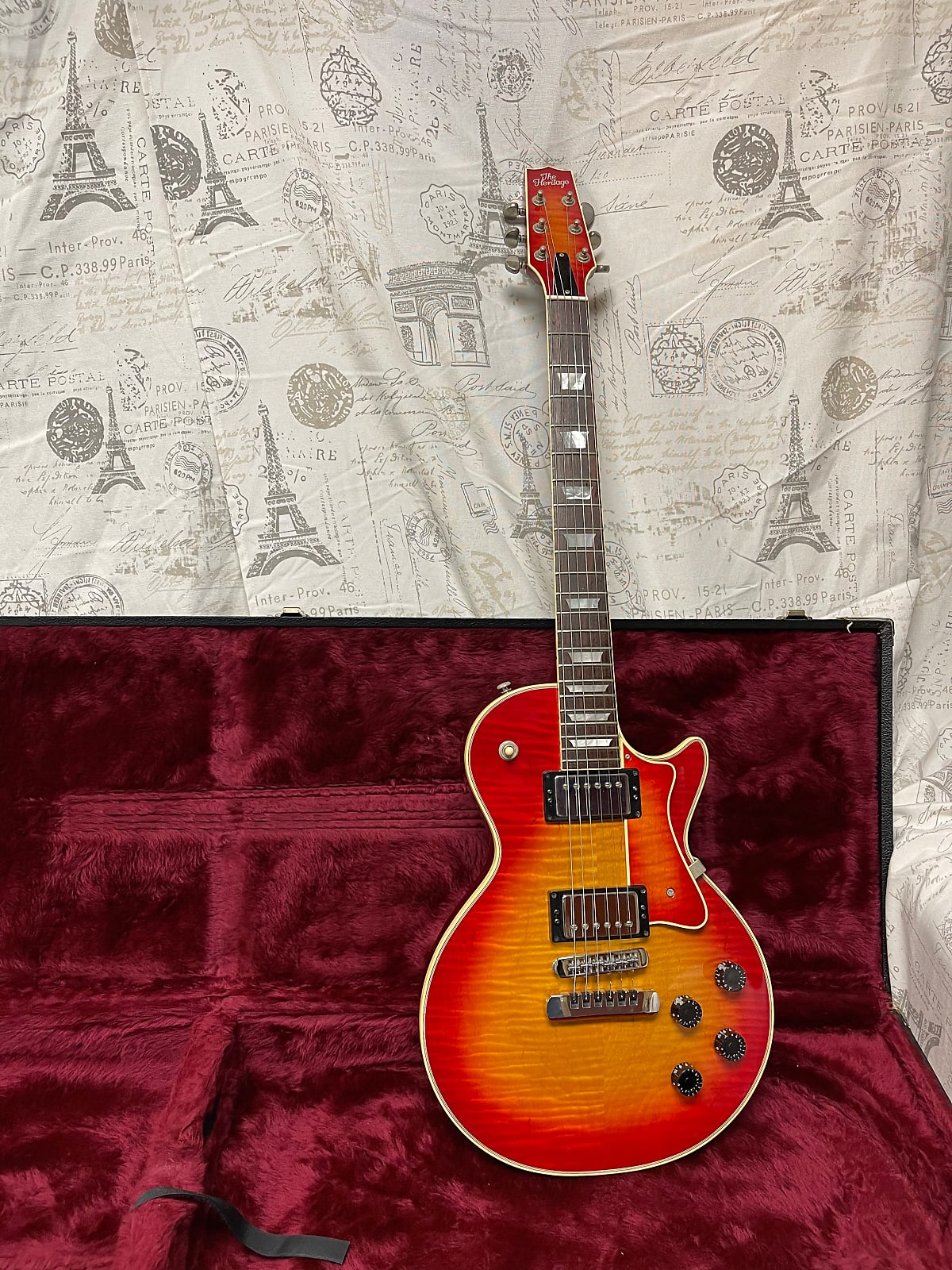

Just picked up a used 2017 H-150 standard from Detroit Guitar (I live in Michigan).  It was essentially brand new...definite case queen...even had the plastic still on the pickups.  I have drank the cool-aid....I have 3 other single cuts that will now be getting sold to start saving for a custom core....or another standard lol.


Welcome to the Club Sean! You started off with a beauty. Enjoy

  • Like 1
Link to comment
Share on other sites

Hello all, I'm Neil from the Orlando, FL area.

I had been without a Les Paul for about 6 months.  I was only playing my fenders anyway, and decided that if I ever did want a LP again, it would not be the one I had (2015 classic), so I traded it in with another guitar for a nice CS Tele.  I got the itch to own a HH guitar again, and started thinking about another Les Paul with a different neck profile.  My favorite shop in the area, Jimmy's Vintage Music, has a great selection of used quality guitars, so I played a bunch.  LP Standards, an old 1980 LP Firebrand, a PRS 594 10 top, an R7, and R8... and a beautiful aged Pelham blue H150.  You on this forum can probably guess which one I walked out with.  it really came down to the R7 vs the H150, and the 1K price difference was an excellent tie breaker.  I don't know if it's the one piece body or the pickups, but this thing sings.  I'm super impressed with the SD 59s, and the aging process, like the rest of the build, is Custom Shop quality.

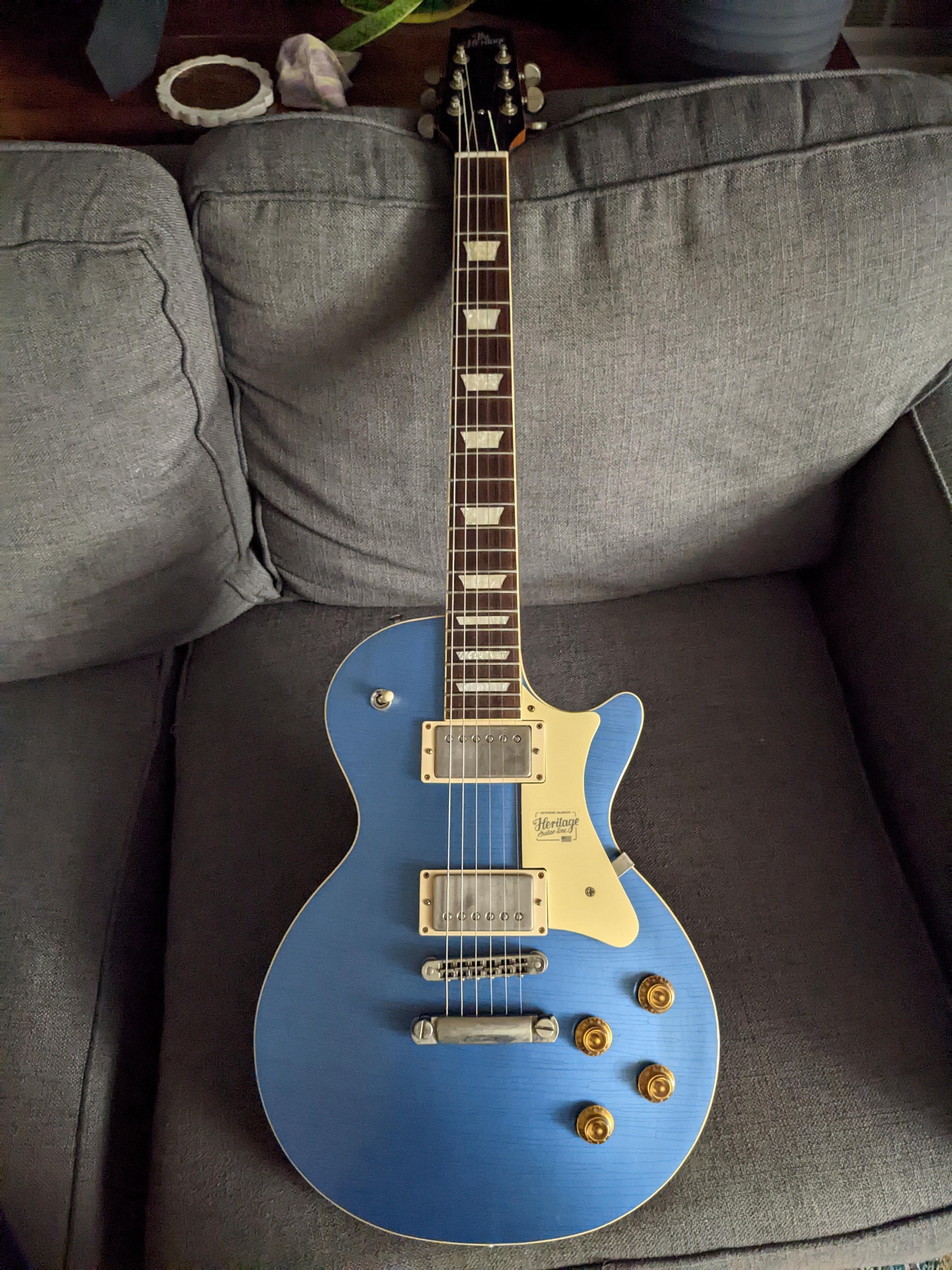

The weight is amazing, checked in at 8lb 12oz.  Seems low compared to the standards I'm seeing listed online.  Anyway, I didn't see much Pelham Blue in these forums, and it seems to be rare color overall, so I thought you all may enjoy some pictures.



[img]https://i.imgur.com/Au91R0F[/img]

[img]https://i.imgur.com/DnO64p4[/img]

[img]https://i.imgur.com/9GV7p6U[/img]

I swear every forum has different formats for uploading images. What's the magic formula here?

Edited by nharrison
Link to comment
Share on other sites

Just now, nharrison said:


Congratulations and Welcome aboard. That one is special and I also love Pelham Blue. Enjoy!

Link to comment
Share on other sites

Thank you for the add. I really appreciate this and hope to answer a few questions I have about a H-535 I received this year. First. I guess I've been playing bass and guitar since I was 10 and that would have been about 60 years ago. Never my profession but was always my aspiration and I was very fortunate to have played "Hired Gun" with some very good local musicians in and around Montreal Quebec, but mostly as a bass man, Blues, rock, country and many years on the stand-up bass playing bluegrass. But no more night gigs for me and the last several years I've focused on my guitar playing and jazz tunes.

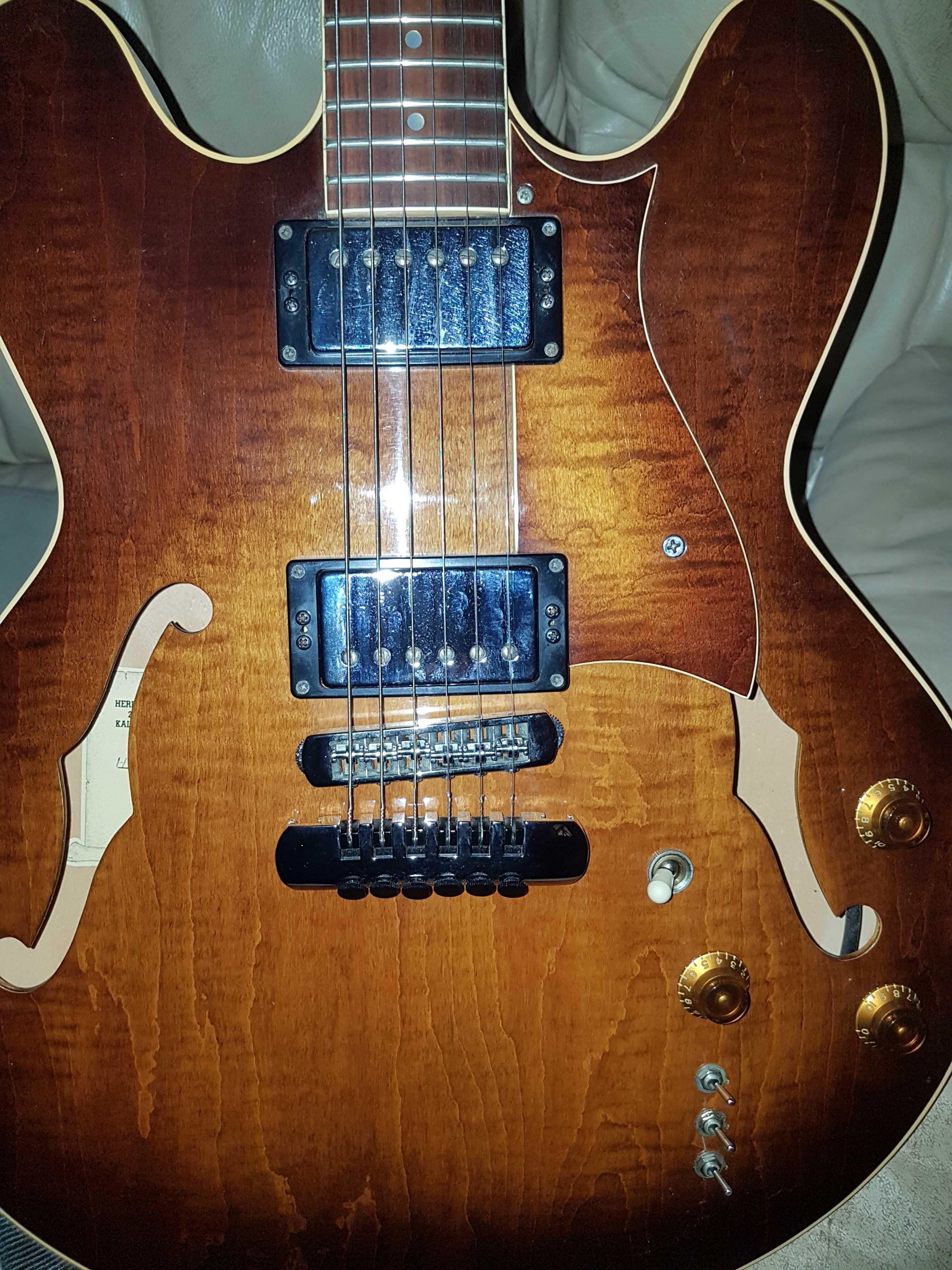

My guitars include 2 Gretsch's, a Gibson L4, Strat and Tele, and Epi 335 but recently my buddy left me his 1996? Heritage H-535 ASB. Beautiful guitar and amazing build quality. Serial no. starts V117xx. I understand that this is a custom VIP edition with space control bridge and fine tuners and I have many issues/questions.

1. I have no idea exactly what the 3 mini toggle switches do. Can you advise?

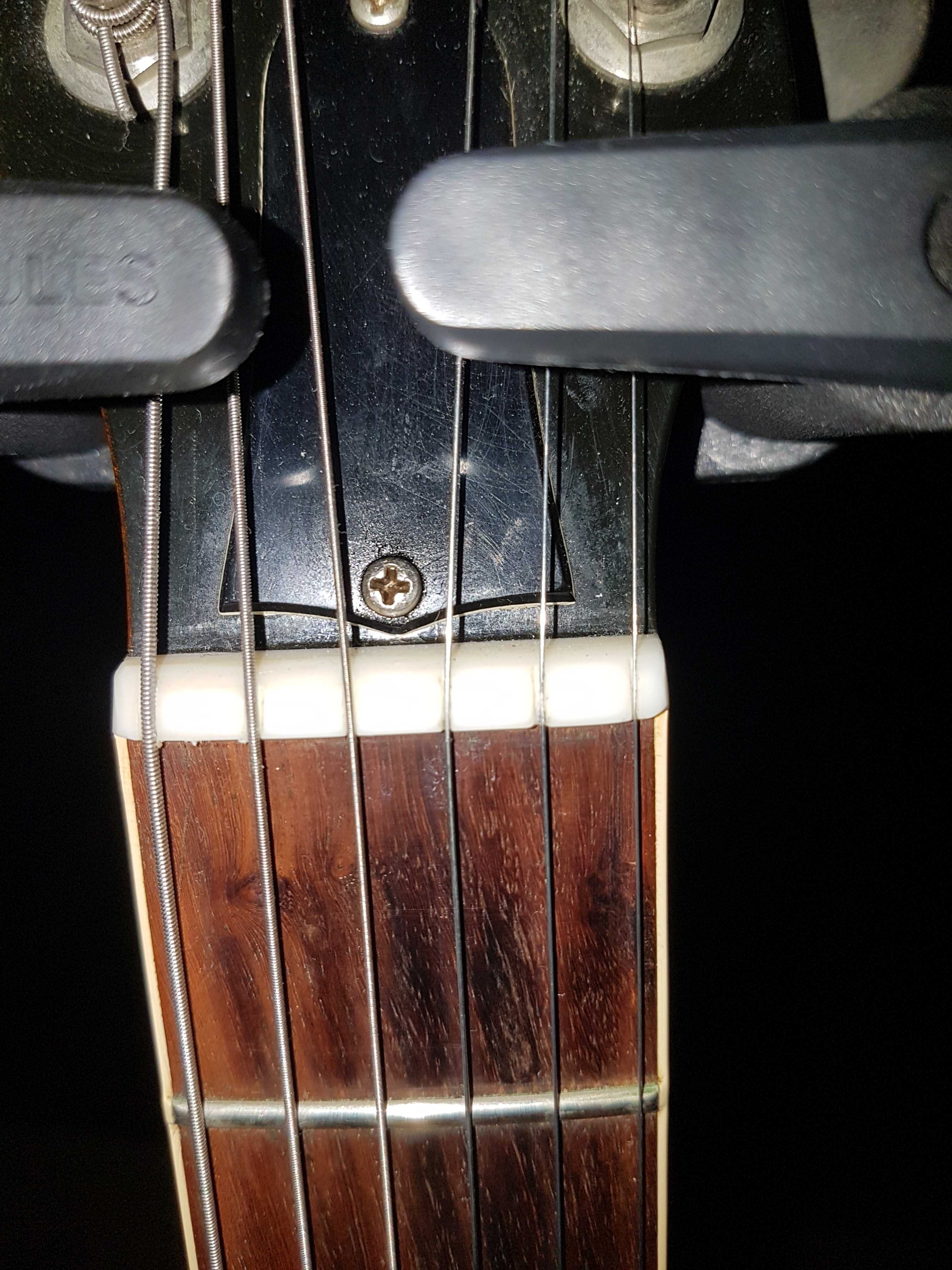

2. If you can see in photo, the nut is poorly spaced ..that low E is noticeably wider than the rest and I'm planning to relace with a 1 11/16" tusq nut...right size I think but not sure if it's Gibson or Epi style.. suggestions?

3. The main pup selector and mini toggle are all badly oxidized.. and cut out and scratchy. I've been spraying Deoxit with some improvement, But thinking of replacing, Is the main pup selector a standard Gibson Switchcraft A-AB-B? Should I replace the switches?

All in all, plays very well and deserves some TLC. Would love to hear your group thoughts.

John Samborsky

Austin, Quebec CANADA



Edited by Sam01
Trying to attach photos???
  • Like 1
Link to comment
Share on other sites

15 minutes ago, Sam01 said:

Thank you for the add. I really appreciate this and hope to answer a few questions I have about a H-535 I received this year. First. I guess I've been playing bass and guitar since I was 10 and that would have been about 60 years ago. Never my profession but was always my aspiration and I was very fortunate to have played "Hired Gun" with some very good local musicians in and around Montreal Quebec, but mostly as a bass man, Blues, rock, country and many years on the stand-up bass playing bluegrass. But no more night gigs for me and the last several years I've focused on my guitar playing and jazz tunes.

My guitars include 2 Gretsch's, a Gibson L4, Strat and Tele, and Epi 335 but recently my buddy left me his 1996? Heritage H-535 ASB. Beautiful guitar and amazing build quality. Serial no. starts V117xx. I understand that this is a custom VIP edition with space control bridge and fine tuners and I have many issues/questions.

1. I have no idea exactly what the 3 mini toggle switches do. Can you advise?

2. If you can see in photo, the nut is poorly spaced ..that low E is noticeably wider than the rest and I'm planning to relace with a 1 11/16" tusq nut...right size I think but not sure if it's Gibson or Epi style.. suggestions?

3. The main pup selector and mini toggle are all badly oxidized.. and cut out and scratchy. I've been spraying Deoxit with some improvement, But thinking of replacing, Is the main pup selector a standard Gibson Switchcraft A-AB-B? Should I replace the switches?

All in all, plays very well and deserves some TLC. Would love to hear your group thoughts.

John Samborsky

Austin, Quebec CANADA






Link to comment
Share on other sites

The switches control the Var-i-phase  VIP system.  You have both a phase adjustment and coil tap.

They work like this:

The 2 Lower Knobs (Looking down at Controls from playing position) Left:Master Volume Right: Master Tone

Upper Knob is the Vari-Phase Control  -  On 10: In Phase,   On Zero: Out of Phase.
Note: Vari-Phase only works when Mini-Toggles 2 and 3 are Down

Again Looking Down from Playing Position
Mini-Toggles are #1 #2 and #3

#1 Toggle Up: Is Neck Pick-up Coil Tap Down: Tap Off
# 2 and #3 Toggles Down is Vari-pHASE for Bridge PU
#2 and #3 Toggles Opposite each other 1-up 1-down is "Stand by Dead" or Both Coils
#2 and #3 Toggles Both Up is Coil Tap Bridge Pick-up!

If you pull the wiring harness, you'll want to carefully map out the switches.   It's not anywhere close to the standard 4 knob  / Vol-Vol  Tone-Tone with 3way selector setup.



The nut should be standard Gibson style.   The Heritage guys were all ex-Gibson people, and as such, that's how they designed their guitars.

A V serial number indicates a 2005 build.   The  Serial number scheme is explained here:  Date Your Heritage







  • Like 2
Link to comment
Share on other sites

Earlier this year I got some info from Heritage historian Ren Wall, who sent me some info as well.

yes we outfitted our production guitars with the Schaller TP-6 finetune tailpiece  for custom orders and normally they had the same type tailpiece without the fine tuners. Just the hook-in style.

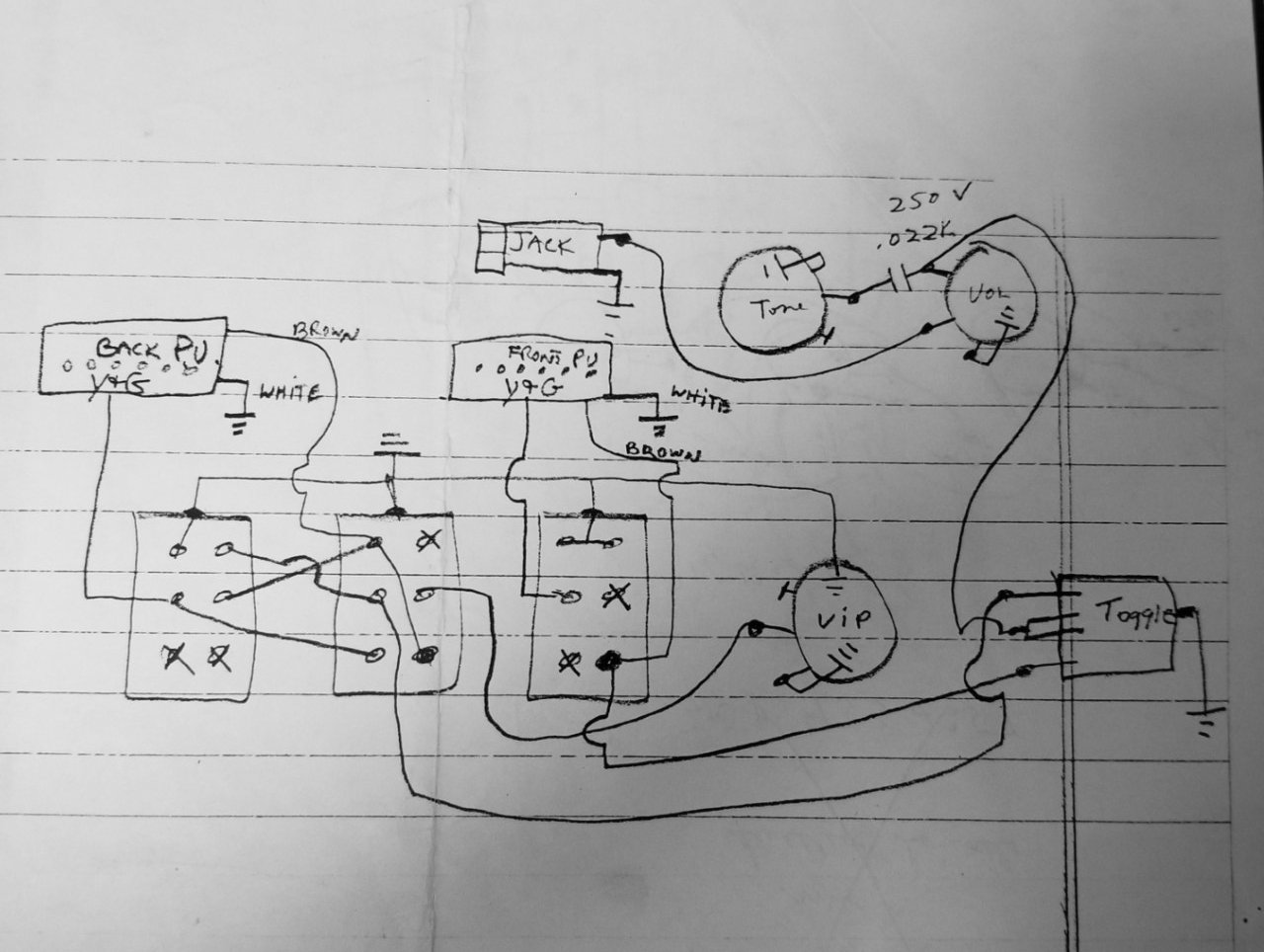

This should help you as it is the single VIP schematic. For 3 mini- switches.

Coil tapping ( neck pickup) and phase rolling for the bridge pickup.

new 1-11/16" nuts can be ordered throughwww.stewmac.com

 Hope this helps.

 ren Heritage

H535 Wiring VIP.jpg

  • Like 1
Link to comment
Share on other sites

  • 2 weeks later...

Hi. I am Dave from the Knoxville, Tennessee area.

New H150 Standard in Traditional Sunburst bought through Reverb. What a white knuckle purchase! Turned out perfect, and could not be happier. Wichita Band Instruments was the seller, and the H150 arrived fast, and spotless condition. I HATE buying sight unseen, but this one stole my heart. (Really love the subtle flametop on mine!)

About 20 years ago I had bought an H150 Goldtop off Ebay that had a custom ebony fretboard. Never could bond with that one.

Anyway, glad to have this new one, and hang out with you cats...




  • Like 2
