musicalfish Posted July 13, 2023 Share Posted July 13, 2023 Hello! I am hoping to replace the bridge and tailpiece on my H-150. They are chrome, and I just prefer the look of nickel. Is there a drop-in replacement anyone could recommend? I can setup a guitar no problem, but don't want to fuss around with pulling studs or drilling. Link to comment Share on other sites More sharing options...
Spectrum13 Posted July 13, 2023 Share Posted July 13, 2023 Link to comment Share on other sites More sharing options...
kbp810 Posted July 13, 2023 Share Posted July 13, 2023 Faber is a popular replacement; you can do the EZ kit and it will be a straight forward drop in swap. https://faberusa.com/product-category/faber-tone-lock/master-kit/heritage/ Link to comment Share on other sites More sharing options...
musicalfish Posted July 13, 2023 Author Share Posted July 13, 2023 Just now, kbp810 said: Faber is a popular replacement; you can do the EZ kit and it will be a straight forward drop in swap. https://faberusa.com/product-category/faber-tone-lock/master-kit/heritage/ Their kits seem to be for metric/ Schaller bridges. Is Heritage using metric bridges on their American-made guitars? Usually I only see metric hardware on import guitars. Link to comment Share on other sites More sharing options...
kbp810 Posted July 14, 2023 Share Posted July 14, 2023 1 hour ago, musicalfish said: Their kits seem to be for metric/ Schaller bridges. Is Heritage using metric bridges on their American-made guitars? Usually I only see metric hardware on import guitars. What year is your 150? If it's a more recent one, I'd wait for someone else to chime in for confirmation. I haven't owned a plaza Era heritage yet. I know they used to predominantly use Schaller hardware (German) that had metric posts. However... if it had been a dealer spec'd or custom order, it could have varied. I had a 155 that had metric bridge posts and imperial tail posts (I wasn't the original owner though, someone else might have hodge podged that one). Of course when in doubt, can always pull the posts out and check them to be sure. Faber also really good about exchanging posts when needed, if you happen to get the wrong one. Link to comment Share on other sites More sharing options...
kbp810 Posted July 14, 2023 Share Posted July 14, 2023 Too late to edit my post; but just realized the year (2022) is in the thread title. I'm sure someone can chime in soon with confirmation. I know @Kuz could certainly add some insight here. Link to comment Share on other sites More sharing options...
Kuz Posted July 14, 2023 Share Posted July 14, 2023 It states on Faber's website "For Heritage Guitars" and lists the parts. Link to comment Share on other sites More sharing options...
Spectrum13 Posted July 14, 2023 Share Posted July 14, 2023 16 minutes ago, Kuz said: It states on Faber's website "For Heritage Guitars" and lists the parts. Yes did not think I had to say more but appreciated affirmation. Link to comment Share on other sites More sharing options...
kbp810 Posted July 14, 2023 Share Posted July 14, 2023 Ahh, well my apologies for the pedantic posts and unnecessary tag in then. Spectrum, fyi - from my view your original post just appears as a dead image link. Link to comment Share on other sites More sharing options...
hopkinwfg Posted July 15, 2023 Share Posted July 15, 2023 I have a 2023 heritage h150 whom i just took out the stud and bridge and tailpiece with its stud... Maybe if u want some measurement i could be able to help and send in some picture... Am resitting the tailpiece right hand side of the tailpiece stud... Link to comment Share on other sites More sharing options...
musicalfish Posted July 15, 2023 Author Share Posted July 15, 2023 15 minutes ago, hopkinwfg said: I have a 2023 heritage h150 whom i just took out the stud and bridge and tailpiece with its stud... Maybe if u want some measurement i could be able to help and send in some picture... Am resitting the tailpiece right hand side of the tailpiece stud... That would be awesome! Are you able to confirm if it's the metric bridge/ tailpiece? Link to comment Share on other sites More sharing options...
hopkinwfg Posted July 15, 2023 Share Posted July 15, 2023 Just now, musicalfish said: That would be awesome! Are you able to confirm if it's the metric bridge/ tailpiece? Did ya mean the post for both the tailpiece and bridge or stud well? Link to comment Share on other sites More sharing options...
musicalfish Posted July 15, 2023 Author Share Posted July 15, 2023 Just now, hopkinwfg said: Did ya mean the post for both the tailpiece and bridge or stud well? Ah, the posts please. Link to comment Share on other sites More sharing options...
hopkinwfg Posted July 15, 2023 Share Posted July 15, 2023 1 hour ago, musicalfish said: Ah, the posts please. i have actually measured with my technical ruler it seems to be like about 5mm from the base of the bridge post..... the tailpiece post is about 7mm... But let me double confirm again.. unfortunately i dont have a caliper and can only eye ball the screw thread with the core diameter from the base.... Link to comment Share on other sites More sharing options...

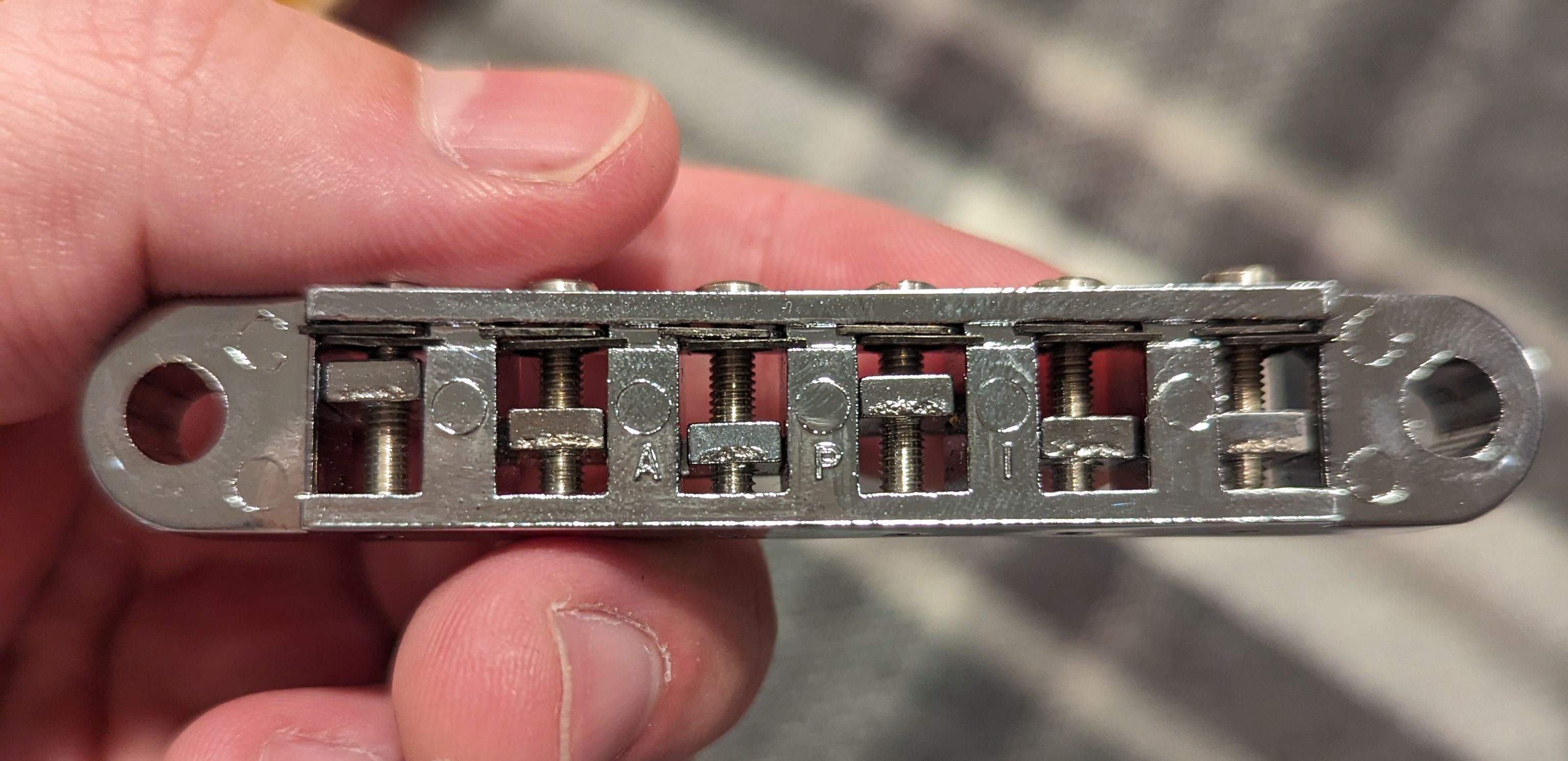

musicalfish Posted July 16, 2023 Author Share Posted July 16, 2023 Thanks! I actually took the bridge off, and took a picture of the bottom. The tailpiece seemed to be stuck and I couldn't get it off. Not sure if there is some locking mechanism I'm not seeing. The bridge has "API" written on the bottom. I'm guessing that is Advanced Plating Inc? Doesn't seem to be the Schaller bridge like Faber is assuming comes on the Heritage. Here's a picture: Link to comment Share on other sites More sharing options...
hopkinwfg Posted July 16, 2023 Share Posted July 16, 2023 7 hours ago, musicalfish said: Thanks! I actually took the bridge off, and took a picture of the bottom. The tailpiece seemed to be stuck and I couldn't get it off. Not sure if there is some locking mechanism I'm not seeing. The bridge has "API" written on the bottom. I'm guessing that is Advanced Plating Inc? Doesn't seem to be the Schaller bridge like Faber is assuming comes on the Heritage. Here's a picture: I suppose its a nashville bridge clone ... but are the measurement exact am not sure... Have contacted the guys at Faber and what he describe on measurements if i recall correct is correct... Heritage changed from using Grover tuners and nashville bridge to their own supplier clone... thats what the folks here says .... Link to comment Share on other sites More sharing options...
davesultra Posted July 16, 2023 Share Posted July 16, 2023 I replaced the tailpiece studs on my 22’ H-535 and they are Imperial size threads. The new stuff Heritage uses now is made by Pinnacle. Philadelphia Luthier Supply carries it, and it shows dimensions. https://www.philadelphialuthiertools.com/bridge-and-tailpieces/nashville-bridges/pinnacle-machined-steel-nashville-tom-guitar-bridge-for-gibson-les-paul-sg/ https://www.philadelphialuthiertools.com/bridge-and-tailpieces/tailpieces-and-wraparound-tailpieces/pinnacle-locking-tailpiece-zinc-diecast-w-locking-set-screw/ Not sure if this is the info is of any help to you. Link to comment Share on other sites More sharing options...
musicalfish Posted July 16, 2023 Author Share Posted July 16, 2023 Interesting. Mine definitely has Grover tuners. That bridge and tailpiece don't look like mine either. My bridge posts are solid at the top, and my tailpiece doesn't have the holes for set screws. Link to comment Share on other sites More sharing options...
hopkinwfg Posted July 16, 2023 Share Posted July 16, 2023 Mine is a H150 in oxblood i bought a couple of months ago... Not really a good experience i had with Heritage honestly due to the poor hardwares installation it got... The non grover tuners it came has a rather rough touch not as smooth as the original grover tuners.. The bridge stud is slanted so gotta fix it and was lucky enough to be able to take out the tailpiece well ... and will be getting in the faber bridge and tailpiece and the grover tuners ? Link to comment Share on other sites More sharing options...
musicalfish Posted July 16, 2023 Author Share Posted July 16, 2023 I actually checked my tailpiece posts and they seem to be slanted as well. The bridge looks like it may be too. I've had this guitar over a year now and haven't noticed! Since the posts may be slanted, maybe it's better to let sleeping dogs lie and not mess around with replacing something that seems to be working fine. The slant won't cause any issues, right? I'm able to intonate just fine and I get a low action, so no playability issues. Mostly concerned about longevity or issues coming up down the road. But I haven't had the best experience either, this is actually a replacement for another one that had its truss rod maxed out after a few months. Link to comment Share on other sites More sharing options...
hopkinwfg Posted July 16, 2023 Share Posted July 16, 2023 37 minutes ago, musicalfish said: I actually checked my tailpiece posts and they seem to be slanted as well. The bridge looks like it may be too. I've had this guitar over a year now and haven't noticed! Since the posts may be slanted, maybe it's better to let sleeping dogs lie and not mess around with replacing something that seems to be working fine. The slant won't cause any issues, right? I'm able to intonate just fine and I get a low action, so no playability issues. Mostly concerned about longevity or issues coming up down the road. But I haven't had the best experience either, this is actually a replacement for another one that had its truss rod maxed out after a few months. Ouch.... its really poor QC with Heritage !! If you have no problem with ya intonation and have no concern of the slanted post is fine... But i personally want my guitars to look as good as it plays.. Did you mean this current guitar was a piece whom heritage got in for you replacing an earlier one with truss rod issue? Link to comment Share on other sites More sharing options...
musicalfish Posted July 16, 2023 Author Share Posted July 16, 2023 It was actually Sweetwater who replaced it, since I bought from them. But yes, the first one had a truss rod issue, this current one is a replacement for it. Link to comment Share on other sites More sharing options...
ElChoad Posted July 16, 2023 Share Posted July 16, 2023 I replaced the bridge and tailpiece on my '21 Standard with TonePros with an aluminum tailpiece. I got the standard set for a Les Paul. I didn't have to change any of the posts or anything. Link to comment Share on other sites More sharing options...
musicalfish Posted July 16, 2023 Author Share Posted July 16, 2023 Yep, the guitar is fine, just a slight cosmetic thing that will pester me, but it still plays and sounds great and I only noticed when I really inspected it closer than I ever would in the normal course of playing, maintenance, etc. I think I'm going to leave everything as is and not mess with a good thing just to get the look of nickel hardware. Thanks all for your help! Link to comment Share on other sites More sharing options...
musicalfish Posted July 16, 2023 Author Share Posted July 16, 2023 Actually, it appears to be straight when I hold a business card across the tops of the studs anyway . Link to comment Share on other sites More sharing options...
